Super Hydraulic Straightening Machine Used To Calibration The Thick T Beam

Name: Super Hydraulic Straightening Machine Used To Calibration The Thick T Beam
Brand: Friendship Machinery
Price: 92000 USD

Wholesale Super Hydraulic Straightening Machine Used To Calibration The Thick T Beam from china suppliers

Brand Name : Friendship Machinery

Model Number : HYJ Series

Certification : CE, ISO

Place of Origin : China

MOQ : 1

Price : USD92000

Delivery Time : 30 working days

Packaging Details : 20GP * 2, standard packing

Contact Now

Super Hydraulic Straightening Machine Used To Calibration The Thick T Beam

1. Simple introduction

T beam hydraulic straightening machine is used to calibration the thick T beam (upwrap & side bend) and hydraulic float conveyor in the front/ back of main machine, it is widely used in the heavy steel construction industries. After the welded the web and flange the web and flange will be deformation because of the heat up, so it must straightening the web and flange.

The main machine adopts vertical structure, left and right straightening unit is fixed, upper hydraulic cylinder can be adjusted according to the height of the web. Power press roller system with vertical design and can be both horizontal and vertical movement to meet the different T beam, the straightening power is from hydraulic system and with cycloid pin wheel reducer to achieve smoothly transmission.

2. Main Specification

No.	Item (material Q235A only)	Specification
1	Flange thickness	10-60mm
2	Flange width	100-500mm
3	Web thickness	8-30mm
4	Web height	200-800mm
5	T beam length	6000-15000mm
6	Straighteing menthod	Vertical
7	Total power	27KW
8	Main motor	22KW
9	Hydraulic system pressure	18-25Mpa
10	Straightening speed	8m/min
11	Reducer torque	50KN
12	Main pressing roller stroke	150mm
13	Hydraulic jacking device	16Mpa

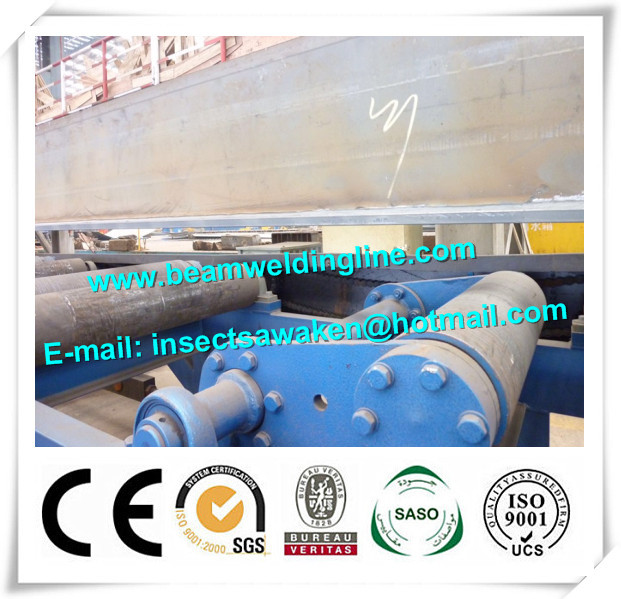

Super Hydraulic Straightening Machine Used To Calibration The Thick T Beam

Side bend and Up warp situation
